400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama

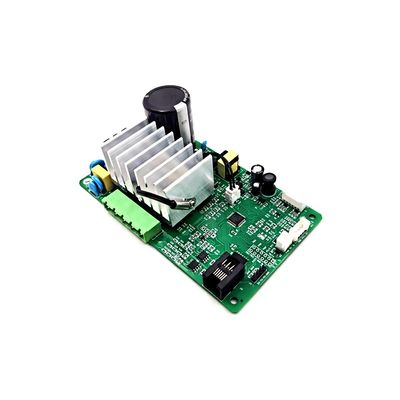

400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation

MOQ: 1
harga: $40-42.80
Informasi Detail
Deskripsi Produk
Informasi Rinci
Tempat asal
Jiangsu, Cina
Nama merek
Bextremeshell
Nomor model
DH-BLD2202TD
Tegangan kerja:
110VAC/220VAC
Kekuatan Dinilai:
400W
Tegangan analog:
0-5V
Frekuensi pwm:
500Hz-10kHz
antarmuka UART:
Ttl
Perlindungan suhu:
90℃
Ketebalan tembaga:
1 ons
Mode kerja:
Hall/Sensorless
Mode kontrol:
Kecepatan loop terbuka/loop tertutup
Peraturan Kecepatan:
0-5V Tegangan/Siklus Tugas PWM/Komunikasi Serial
Fitur Perlindungan:
Arus berlebihan, sirkuit pendek, tegangan berlebihan, di bawah tegangan, terkunci-rotor, over-temper
Penjepit saat ini:
Ya
Urutan Fase Hall:
Belajar sendiri
waktu akselerasi:
Bisa disesuaikan
Waktu Perlambatan:
Bisa disesuaikan
Menyoroti:

400W BLDC motor controller with PWM

,

110VAC BLDC driver board

,

220VAC motor speed regulator

Deskripsi Produk
High Precision BLDC Motor Controller, 110/220VAC Input, Rated Power Consumed 400W, With PWM Speed Regulation
Product Specifications
Attribute Value
Type consumer electronics pcba
Supplier Type General
Copper Thickness 1 oz
Functional Application motor driver
Working Voltage 110VAC/220VAC
Analog voltage 0-5V
PWM 500Hz-10KHz
UART TTL
Temperature protection 90℃
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 0
(The debugging panel is not included)
Key Features
  • Hall/Sensorless working mode, support Hall phase sequence self-learning
  • Support speed open-loop/closed-loop control mode
  • Acceleration and deceleration time can be adjusted
  • Speed regulation mode: 0-5V voltage/PWM duty cycle/serial communication port
  • Start-stop control signal, direction signal, speed feedback FG output
  • Hardware self-test, over-current, short circuit, over-voltage, under-voltage, locked-rotor, over-temperature protections
  • Current clamping function
Port Descriptions
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 1
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 2
Feature Description
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 3
Wiring Diagram
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 4
Installation Dimensions
400W BLDC Motor Controller 110VAC 220VAC with PWM Speed Regulation 5
Tag:

driver motor brushless,

driver motor bldc,

400W BLDC motor controller with PWM
