JYQD-V7.3E2 BLDC Motor Driver 12-36VDC 15A PWM Control

Produk

Pompa yang Disesuaikan

Hubungi Kami

Mr. Amigo Deng

amigodeng@czowo.com

86-189-94777701

Hubungi Sekarang

JYQD-V7.3E2 BLDC Motor Driver 12-36VDC 15A PWM Control

MOQ:	1
harga:	$7.90-9.90

Informasi Detail

Deskripsi Produk

Informasi Rinci

Tempat asal

Jiangsu, Cina

Nama merek

Bextremeshell

Nomor model

JYQD-V7.3E2

Tegangan input:

12-36Vdc

Kekuatan Dinilai:

Kekuatan maksimal:

Arus maks:

Algoritma kontrol:

Gelombang Persegi

Ukuran:

63mm x 42.5mm x 20mm

Kontrol Kecepatan:

PWM/0-5V

Umpan Balik Kecepatan:

Suhu kerja:

-10 ℃ hingga 60 ℃

Frekuensi pwm:

1K-20KHz

Siklus kerja PWM:

0-100%

Amplitudo PWM:

Kontrol Jarak Port:

2.54mm

Jarak port daya:

3,96mm

Sudut Aula:

120 °

Menyoroti:

BLDC motor driver 15A PWM control

BLDC driver board 12-36VDC

motor driver with PWM control

Deskripsi Produk

JYQD-V7.3E2 BLDC Motor Driver

12-36VDC input, 15A working current for Hall sensor BLDC motor with PWM control

Product Attributes

Accessory Type	Motor driver
For Use With/Related Products	BLDC motor

BLDC Motor Driver Major Parameters

Model No.: JYQD-V7.3E2

Power Input: 12-36VDC

Rated power: 350W

Suitability: Hall sensor motor

Max power: 500W

Max current: 15A

Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating

Control algorithms: Square wave

Dimensions: 63mm x 42.5mm x 20mm

Speed Control: PWM/0-5V

Speed feedback signal output: Yes

Working temp: -10℃--60℃

BLDC Motor Driver Applications

JYQD-V7.3E2 BLDC motor driver board is a direct current brushless driver board designed to control DC brushless motors and provide precise speed regulation range from 0 to 100%. The control algorithms of this product are based on square wave which promotes its stability and accuracy.

This driver board is suitable for a wide range of applications, including:

Electric skateboard
Electric scooter
Electric wheelchair
Hoverboard
Drones
Electric unicycle
Electric Moped
Electric go kart
RC car
Industrial robot
Logistics conveyor belt
Automation equipment
CNC machines
Self-propelled lawn mowers
Consumer electronics
Home appliances
Industrial equipment

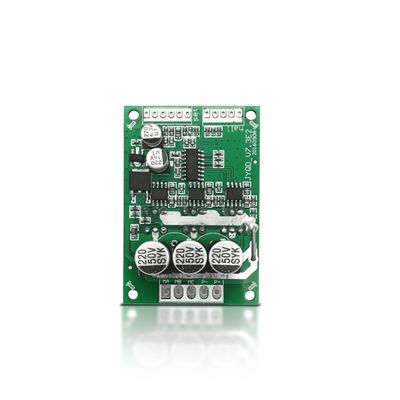

BLDC Motor Driver Appearance

Application Guidelines

Confirm that the voltage and power parameters of the motor do not exceed the specified range.
Applicable to hall brushless DC motor with Hall at 120°. You may need to adjust the Hall line sequence or motor three-phase line sequence according to the actual situation to achieve the best driving effect.
JYQD-V7.3E2 is a driver board without housing and heatsink. It can drive motors below 100 watt without any heatsink, but needs normal ventilation.
The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation.

BLDC Motor Driver Wiring

1. Control port

5V - Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation
Z/F - Rotating direction control ports
VR - Speed control port. Analog voltage linear speed regulation 0.1v -5V
EL - Enable port control
Signal - Speed pulse signal output
GND - Used for Driver board internal control

2. Power port

MA - motor phase A
MB - motor phase B
MC - motor phase C
P- - DC -
P+ - DC +

3. Hall sensor port

Ha - Hall a
Hb - Hall b
Hc - Hall c
GND - GND
5V - 5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor.

5. Control port distance: 2.54mm, Power port distance: 3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

BLDC Motor Driver's Size

Manufacturing Technique

Packing Info

The BLDC motor driver is well packed in an individual antistatic bag.

FAQ

1: What's the Lead time?
Sample: in 5 days
Mass order: in 2-3 weeks

2: What's the MOQ?
1 set for all series products

3: What's the BLDC motor driver Warranty?
12 months from the date of delivery

4: How is the technical support?
We offer 1-1 service & technical support
