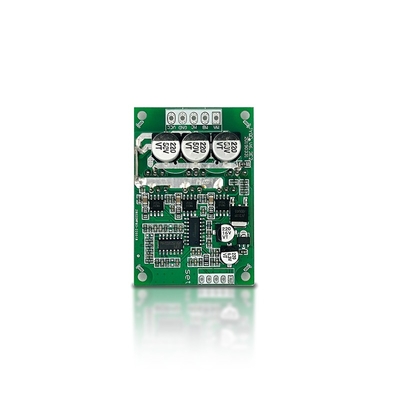

JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation

Produk

Pompa yang Disesuaikan

Hubungi Kami

Mr. Amigo Deng

amigodeng@czowo.com

86-189-94777701

Hubungi Sekarang

JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation

MOQ:	1
harga:	$7.90-9.90

Informasi Detail

Deskripsi Produk

Informasi Rinci

Tempat asal

Jiangsu, Cina

Nama merek

Bextremeshell

Nomor model

JYQD-V6.3E2

Model No.:

JYQD-V6.3E2

Input daya:

12-36Vdc

Kekuatan Dinilai:

Kekuatan maksimal:

Arus maks:

Algoritma kontrol:

Gelombang Persegi

Ukuran:

63mm x 36.5mm x 17mm

Kontrol Kecepatan:

PWM/0-5V

Umpan Balik Kecepatan:

Suhu kerja:

-10 ℃ hingga 60 ℃

Frekuensi pwm:

1K-20KHz

Siklus kerja PWM:

0-100%

Amplitudo PWM:

Kontrol Jarak Port:

2.54mm

Jarak port daya:

3,96mm

Menyoroti:

500W BLDC motor driver

15A BLDC driver board

BLDC motor speed regulator

Deskripsi Produk

JYQD-V6.3E2 BLDC Motor Driver

500W power brushless DC motor driver with speed regulation function, widely used in electric vehicles and industrial applications.

Product Specifications

Attribute	Value
Accessory Type	Motor driver
For Use With	BLDC motor

Technical Parameters

Model No.: JYQD-V6.3E2
Power Input: 12-36VDC
Rated Power: 350W
Suitability: Sensorless motor
Max Power: 500W
Max Current: 15A
Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
Control Algorithms: Square wave
Dimensions: 63mm × 36.5mm × 17mm
Speed Control: PWM/0-5V
Speed Feedback Signal Output: Yes
Working Temperature: -10℃ to 60℃

Applications

The JYQD-V6.3E2 BLDC motor driver board is designed to control DC brushless motors with precise speed regulation from 0 to 100%. Its square wave control algorithms ensure stability and accuracy for various applications:

Electric skateboards & scooters
Electric wheelchairs & hoverboards
Drones & RC vehicles
Industrial robots & automation
CNC machines & conveyor systems
Consumer electronics & appliances

Product Appearance

Application Guidelines

Confirm motor voltage and power parameters are within specified range
Driver board requires proper ventilation; heatsink recommended for motors above 100W
5V output port is only for speed adjustment components, not external power equipment

Wiring Instructions

Control Port:
5V - Internal output for speed adjustment
Z/F - Rotation direction control
VR - Speed control (0.1V-5V or PWM)
Signal - Speed pulse output
GND - Control ground

Power Port:
MA/MB/MC - Motor phases
VCC/GND - DC power input

Use shielded wires for distances over 50cm from motor
Control port spacing: 2.54mm; Power port spacing: 3.96mm
Ensure proper insulation between MOSFET and heatsink

Dimensions

Manufacturing Process

Packaging

The BLDC motor driver is securely packed in an individual anti-static bag for protection during shipping and storage.

Frequently Asked Questions

What is the lead time?

Samples: 5 days
Mass orders: 2-3 weeks

What is the minimum order quantity?

1 set for all series products

What is the warranty period?

12 months from delivery date

What technical support is available?

We provide one-on-one service and technical support
